Module Box
Superb Cost Effectiveness,
The Highest Configuration Low to $158
Water Curtain Cooling | Built-In Fan Cooling
There is a mobile mining container module on a blue background.

Fan Cooling Mobile Mining Container – Saves 21% Costs Than Others

Fan cooling mobile mining container is specially designed for large-scale supercomputing data center setup. This container adopts double-layer water curtains and built-in fans for system cooling. The outer layer curtain helps to reduce the internal ambient temperature and the inner layer curtain helps to alleviate the influence of air humidity on miners. Meanwhile, the built-in fan cooling helps to reduce the operating costs of the mining container.

It looks like a container from its appearance, but its inside and outside are designed to support all the high computing power miners on the market today.

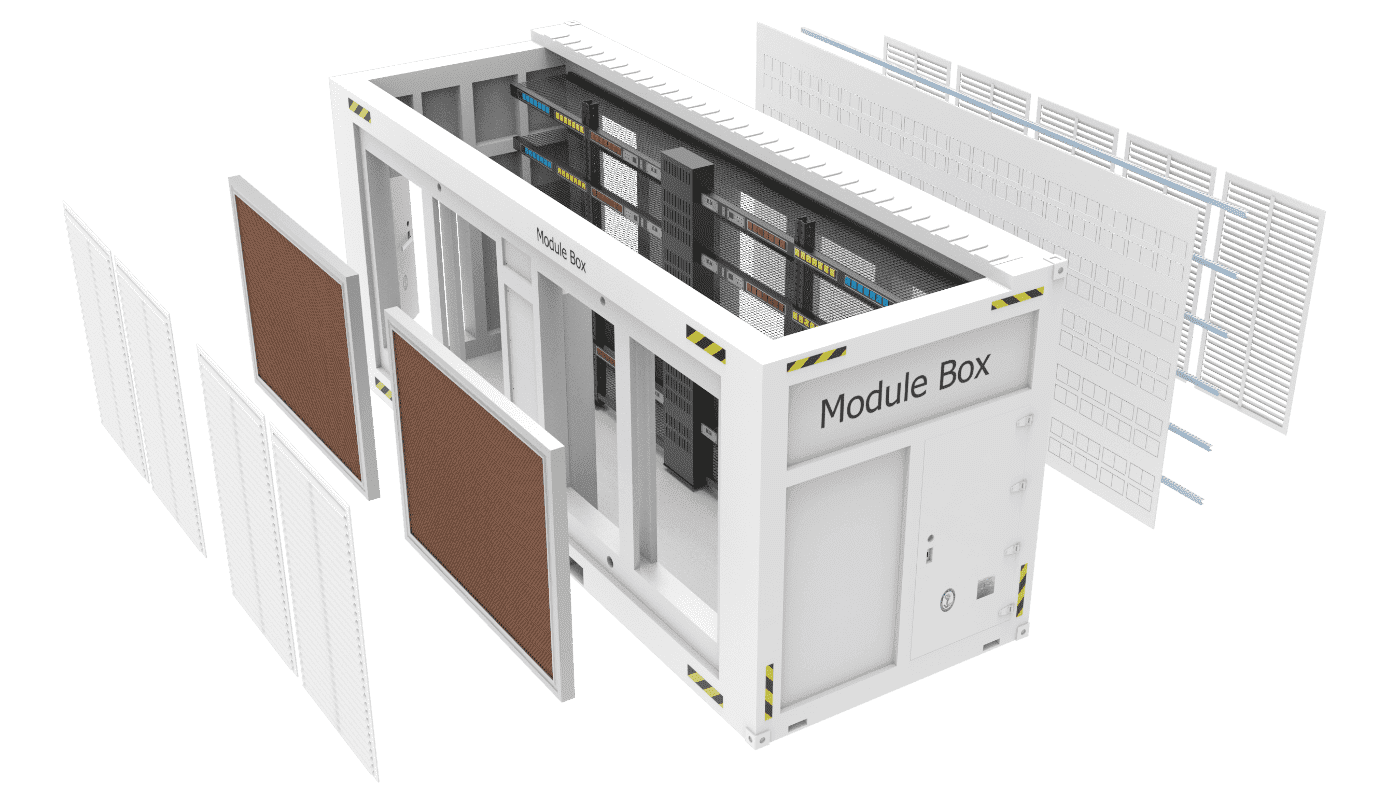

The explosive drawing of all components in the mobile mining container.
The explosive drawing of all components in the mobile mining container.
Shelves
  • Internal layer height: 400 mm
  • Rack round hole spacing: 40 mm
  • No. of stands (20-feet container): 2 × 6
  • No. of stands (40-feet container): 4 × 6
  • The layer height can be adjusted according to the miners models.
x
Distribution System
  • Support wide voltage and wide frequency
  • Power supply range: 360V – 480V, 50–60 Hz
  • Internal output voltage: 200V – 277V, 50–60 Hz
  • Maximum allowable total power: 1500 kw/h (6250A)
  • Multiple security protection system
  • Exclusive intelligent control system
x
Cooling System
  • Double-layer water curtain cooling
    • Outer layer. Reduce the internal ambient temperature
    • Inner layer. Alleviate the influence of air humidity on miners.
  • Built-in fan cooling. Built-in fan cooling helps to reduce the operating costs.
x
Specification
  • Main material

    Q235 and above

  • Top plate

    SPH plate

  • Floor steel

    Q235

  • Paint spraying

    epoxy rich-zinc paint + acrylic paint

  • Film thickness

    ≥ 120 μm

  • Cooling mode

    water curtain cooling + fan cooling

  • Applicable miner model

    Ant S19Pro and all miners on the market.

  • Operating temperature

    -20 °C to 45 °C

  • Operating humidity

    0–90% RH

  • Working altitude

    0–5000 m

Size
20-feet mobile mining container diagram
Module Box
20 HC
  • 6058 × 2438 × 2896 External sizes (mm)
  • 5900 × 1380 × 2600 Internal sizes (mm)
  • 4T (±5%) Weight
  • 42.77 Overall volume (m3)
  • 2 × 6 layers Internal shelf layers
  • Max. 210 Miners Quantity
40-feet mobile mining container diagram
Module Box
40 HC
  • 12192 × 2438 × 2896 External sizes (mm)
  • 11800 × 1380 × 2600 Internal sizes (mm)
  • 8T (±5%) Weight
  • 86.08 Overall volume (m3)
  • 4 × 6 layers Internal shelf layers
  • Max. 420 Miners Quantity
Features
Strong Mobility

The overall structure is easy to expand and transport.

Excellent Cooling System

Double-layer water curtains and built-in fan achieve inside cooling.

Rainproof Facility

Louver is provided outside the container to resist rain and snow weathers.

Long Lifespan

It is made of high strength metal and can offer a long lifespan.

Plug & Play

When the container arrived, it can start work after connecting the power supply and WiFi.

Good Compatibility

Adjustable layer height suits to different miner types.

Certification
CCS certified icon
CUL certified icon
CE certified icon
